DAP WMS6-B

40 W RMS/120 W peak – 16 Ohm – ABS
Easy installation
2-way system for clean full-range sound
Horizontal and vertical positioning
Protected against dust ingress and downpour (IP54)

€180

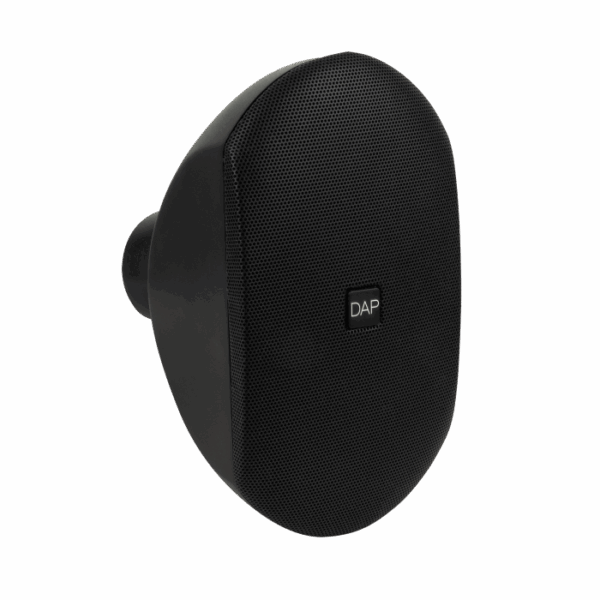

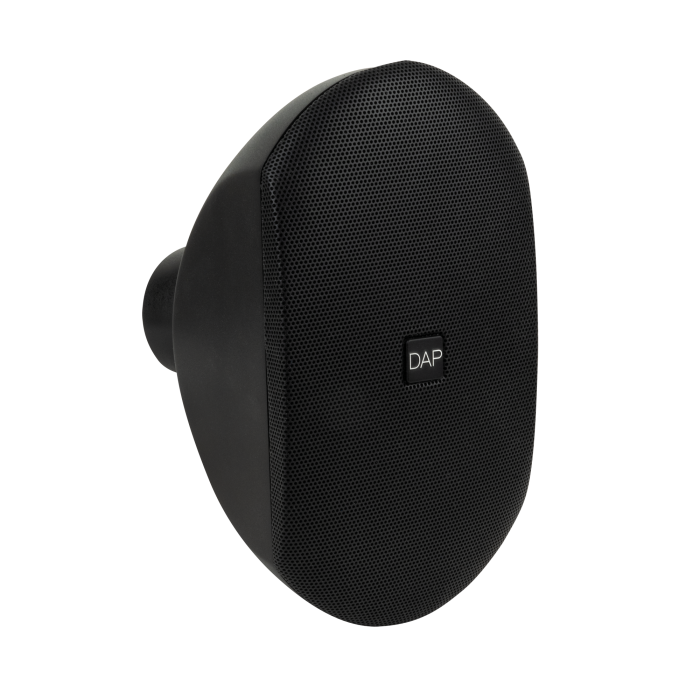

The DAP WMS6-B is a black 6-inch design wall speaker suitable for low-impedance audio installations. The smart design of this speaker allows you to mount it easily by using the included wall mounting plate. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that uses a ball joint to make it easily tiltable over 30° in both horizontal and vertical directions and rotatable over 90°. Therefore, the DAP logo on the front is rotatable. Due to the quick, easy installation and versatile applicability, this type of speaker is excellent for use in a lot in public spaces, such as shops, restaurants and even clubs. The WMS6-B is equipped with a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 40 watts (120 W peak), it can produce an SPL of up to 105.5 dB at 1 metre. A sturdy ABS housing protects against the ingress of dust and splash water. This means you can even use the speakers in damp places and sheltered outdoor locations, for example on a porch.

Нема прикажани својства.

Inputs
RMS Input Power
40 W
Peak Input Power
120 W
Passive Input Connection
Terminal
Outputs
Passive Output Connector
Terminal
Audio Specifications
Speaker System
2-way
Speaker Sensitivity (1 W/1 m)
89.5 dB
Speaker Impedance
16 Ω
Maximum SPL at 1 m
105.5 dB
Frequency Response Minimum
70 Hz
Frequency Response Maximum
20000 Hz
Woofer Diameter
6.5 ”
Woofer Voice Coil Diameter
1 ”
Woofer Magnet Type
Ferrite
Compression Driver Voice Coil
0.7 ”
Compression Driver Magnet Type
Ferrite
Dispersion Angle (Horizontal)
60 °
Dispersion Angle (Vertical)
30 °
Mechanical Specifications
Height (mm)
385 mm (15.158″)
Width (mm)
215 mm (8.465″)
Length (mm)
240 mm (9.449″)
Installation Depth (Excl. Connector)
240 mm (9.449″)
Material
ABS
Colour
Black
Weight
3.7 kg (8.157 lb)
IP Rating
IP54
Product Properties
Speaker Grille Material
Aluminium
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Minimum Ambient Temperature
-10 °C (14 °F)Inputs
RMS Input Power
40 W
Peak Input Power
120 W
Passive Input Connection
Terminal
Outputs
Passive Output Connector
Terminal
Audio Specifications
Speaker System
2-way
Speaker Sensitivity (1 W/1 m)
89.5 dB
Speaker Impedance
16 Ω
Maximum SPL at 1 m
105.5 dB
Frequency Response Minimum
70 Hz
Frequency Response Maximum
20000 Hz
Woofer Diameter
6.5 ”
Woofer Voice Coil Diameter
1 ”
Woofer Magnet Type
Ferrite
Compression Driver Voice Coil
0.7 ”
Compression Driver Magnet Type
Ferrite
Dispersion Angle (Horizontal)
60 °
Dispersion Angle (Vertical)
30 °
Mechanical Specifications
Height (mm)
385 mm (15.158″)
Width (mm)
215 mm (8.465″)
Length (mm)
240 mm (9.449″)
Installation Depth (Excl. Connector)
240 mm (9.449″)
Material
ABS
Colour
Black
Weight
3.7 kg (8.157 lb)
IP Rating
IP54
Product Properties
Speaker Grille Material
Aluminium
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Minimum Ambient Temperature
-10 °C (14 °F)
