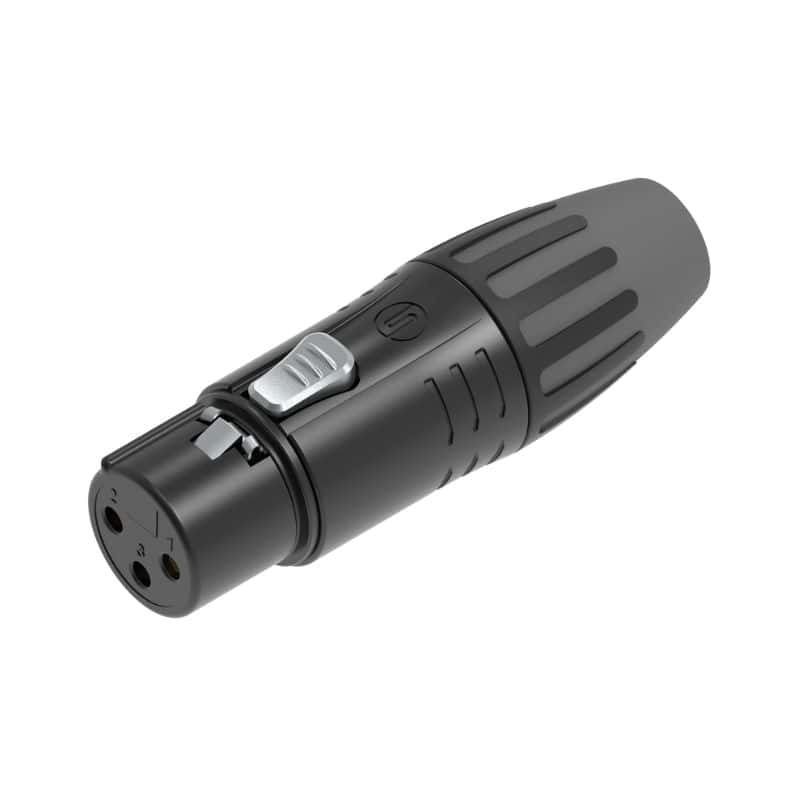

Seetronic SCMF3B 3-core XLR Female Cable Connector

Seetronic SCMF3B 3-core XLR Female Cable Connector

  • 3-core XLR female cable connector with black plated housing and silver plated contacts
  • The metal housing adopts internal thread design to ensure that it can withstand gravity under any site conditions
  • Two cable clamps are provided for different cable diameters; black clamp 3.5-6mm; white clamp 6-8mm
  • No ring design which is more compact and can save space
  • Colored boots available for coding and identification
  • The boot is equipped with a polyurethane sealing sleeve to prevent the cable from being affected by bending pressure to the greatest extent

€2

The Seetronic SCMF3-B is a high-quality 3-core XLR female cable connector ideal for professional audio, lighting, and other applications requiring a reliable connection. It features a durable black plated housing with a secure internal thread design for enhanced gravity resistance.
  • Durable Design: Black plated housing and silver plated contacts for optimal signal transfer and corrosion resistance.
  • Secure Connection: Internal thread design ensures the connector stays securely fastened, even under demanding conditions.
  • Versatile Cable Clamping: Two cable clamps accommodate different cable diameters (3.5-6mm and 6-8mm) for a secure fit.
  • Space-Saving Design: No-ring design minimizes bulk and saves space.
  • Color-Coded Boots: Available with colored boots for easy identification and coding.
  • Enhanced Strain Relief: Boot features a polyurethane sealing sleeve to protect the cable from bending pressure.
  • Connection Type: XLR Female
  • Rated Current: 16A per contact
  • Rated Voltage: <50V
  • Contact Resistance: ≤ 3 mΩ
  • Insulation Resistance: > 10 GΩ (initial)
  • Cable Size: Max. 2.5 mm² (Max. 14 AWG)
  • Protection Class: IP40
  • Temperature Range: -30°C to +80°C
  • Standards: IEC 61076-2-103

SCMF3-B Data Sheet
