Electrical Specifications and Connections
Flashover Voltage
4000 V
Impedance
10000 Ω

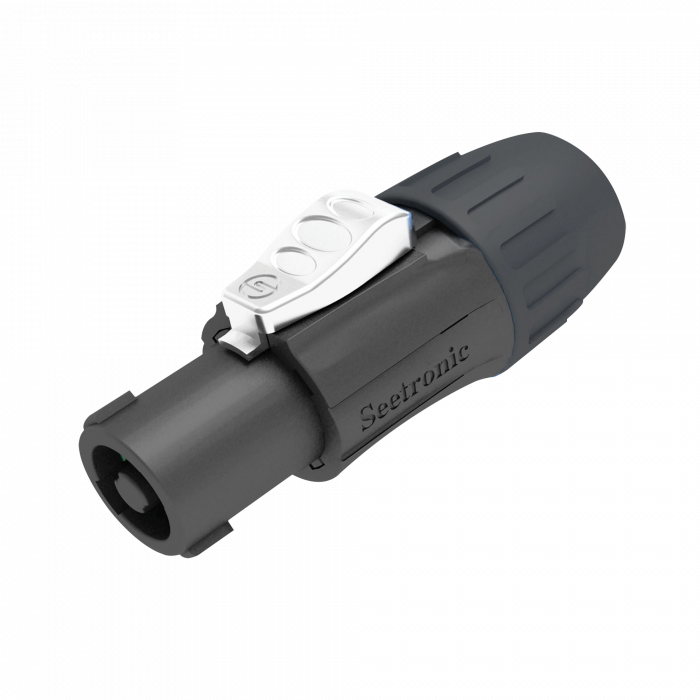

Brand Connector 1
Seetronic
Pins
4
Wire Connection
4 mm² (0.0062 inch²)
Maximum Wire Size
4 mm² (0.0062 inch²)
Maximum Wire Size AWG
12 AWG
Outer Cable Diameter
15 mm (0.591″)
Mechanical Specifications
Length (mm)
69.7 mm (2.744″)
Height (mm)
31.4 mm (1.236″)
Width (mm)
27.1 mm (1.067″)
Diameter
31.4 mm (1.236″)
Weight
0.1 kg (0.22 lb)
IP Rating
IP20 (indoor use only)
Housing
Polyamide
Colour
Black
Contact Resistance
3 < mΩ
Product Properties
Locking Device
Latch
Contact Type
Silver plated
Thermal Specifications
Maximum Ambient Temperature
80 °C (176 °F)
Minimum Ambient Temperature
-30 °C (-22 °F)
