Senheiser

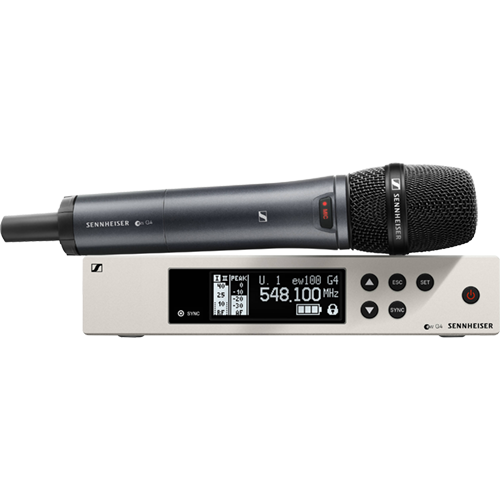

Sennheiser EW 100 G4-835-S-B Wireless Handheld Microphone System

Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

€0

Cardioid, dynamic wireless system for singers or presenters. The first choice for both sound designers and occasional users because of its simplicity.

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845 and e 865 capsules on a lightweight aluminum transmitter with integrated mute switch.

EM 100 G4 Specifications:

• Frequency Range: 626 – 668 MHz
• Compander: Sennheiser HDX
• THD: • Weight App: 980 g
• Audio Output: 6.3 mm Jack Socket (Unbalanced) +12 dBu / XLR Socket (Balanced) +18 dBu
• SNR: >/= 110 dBA
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: +/- 48 kHz
• Nominal Deviation: +/- 24 kHz
• Modulation: Wideband FM
• PS: 12 V DC
• Antenna Connector: 2 BNC Sockets
• Current Consumption: 300 mA
• Adjacent Channel Rejection: Typically >/= 65 dB
• Intermodulation Attenuation: Typically >/= 65 dB
• Receiving Frequency: Max. 1680 Receiving Frequencies, Adjustable in 25 kHz Steps
• RF Sensitivity: < 2.5 microV for 52 dBA eff S/N
• Receiver Principle: True Diversity
• Blocking: >/= 70 dB

SKM 100 G4-S Specifications:

• Compander: Sennheiser HDX
• THD: >/= 0.9 %
• Weigh App.: 450 g
• SNR: >/= 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: +/- 48 kHz
• Nominal Deviation: +/- 24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• PS: 2 AA Batteries, 1.5 V or BA 2015 Accupack
• Input Impedance: 40 kOhms
• Max. Input Voltage: 3 Veff
• Powering: 3 V Battery / 2.4 V Rechargeable Battery
• Transmission Frequency: Max. 1680 Transmitting Frequencies, Adjustable in 25 kHz Steps
• AF Frequency Response: 80 – 18000 Hz

MMD 935-1 Specifications:

• SPL: 154 dB SPL
• Transducer Principle: Dynamic
• Pick-Up Pattern: Cardioid
• Sensitivity: 2.5 mV/Pa
