4 Channels
2 × 1000 W @8Ω bridge
A 4 ohmios: 500 W por Canal
2 x 1000 W @100V, 2x600W @70 V line bridged
€1.600

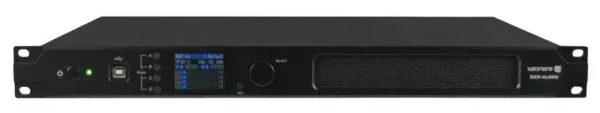

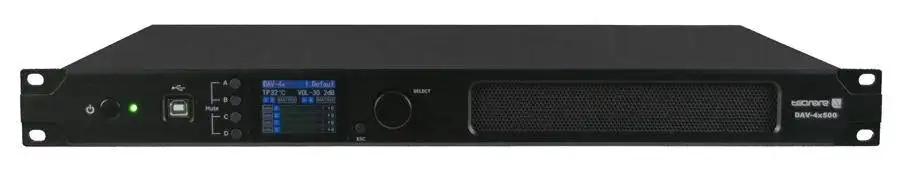

Tecnare’s CS Electronics series of amplifiers is a top-of-the-line solution for sound professionals seeking exceptional sound quality and reliability. The series includes the powerful DMA8X8 matrix and the DAV4X500 amplifier. The DMA8X8 offers eight inputs and eight outputs, with the ability to route any input to any output, making it ideal for complex sound reinforcement applications. The DAV4X500, on the other hand, is a versatile four-channel amplifier capable of delivering up to 500 watts per channel at 4 ohms. Both units feature advanced signal processing and protection features to ensure optimal performance and longevity. With the CS Electronics series, Tecnare has once again proven its commitment to providing cutting-edge solutions for the most demanding sound reinforcement applications.
| General Specifications | |
| Amplifier topology | Class-D |
| Number of channels | Four |
| Total Power output | 4×500 W @4Ω; or 2×1000 W @8Ω bridge / 2 x 1000 W @100V, 2x600W @70 V line bridged |
| Audio inputs | 4x Analogue, and Optional 4xDante™ (factory fitted option) |
| Digital Signal Processing | DSP SHARC® processing on all inputs and outputs |
| Control & monitoring | TCP/IP, USB, RS485, RS232, GPIO – Volt-free relay and contact closure port |
| Frequency response, 4 Ω load | +/- 0.5dB, 20Hz to 20kHz @8Ω load |
| Total harmonic distortion, THD | ‹0.1% typical, 1kHz signal, full power |
| Inter-channel crosstalk worst case combination | Better than -70dBr at 1kHz |
| Maximum analoge input level | +16dBu (4.9V) => +6dB |
| Digital Signal Processing |
|
| Resolution | 24 bit |
| Sample rate | 48 kHz |
| Input processing | Input signal routing, gain, sensitivity level, Polarity, Mute, Noise Gate EQ: 31 x PEQ / HPF / LPF |
| Output processing | Source, delay, gain, polarity, Mute, crossover filters, Limiters, Out Compressor EQ: low shelf, 10xPEQ / HPF / LPF |
| Power Output | |
| 4Ω nominal load, per channel |
500 W |
| 8Ω nominal load, per channel | 300 W |
| Bridge, per channel pair, 8Ω nominal load | 1000 W |
| 70V / 100V line operation /two channel line bridged | 600 W/1000 W; 70V/100V |
| Impedance | 4-16 ohm, DSP Selectable |
| Protections Systems | |
| System protection |
|
| Speaker protection |
|
| Monitoring |
|
| Physical |
|
| Cooling |
Two fans intelligent control |
| Analogue IN and LINK | 4x female XLR, Input Phoenix pluggable terminal block, Link Phoenix terminal block |
| Amplifiers output | 4x two (black and red) binding post terminal |
| Main input connector | IEC connector |
| Dante™ Primary and Secondary | 2x Shielded RJ45 |
| Relay output & contact clousure input | Phoenix pluggable terminal block |
| Front panel display | 320 x 320 IPS LCD |
| Front panel encoders | One, idented, velocity sensitive |
| Front panel push buttons | Four for Mute and Escape |
| LED indicators | Power on |
| Enclosure |
Standard 19” 1U (44,5×300)mm (11.81” deep) |
| Net Weight |
3,6kg (7.93 lbs) |
