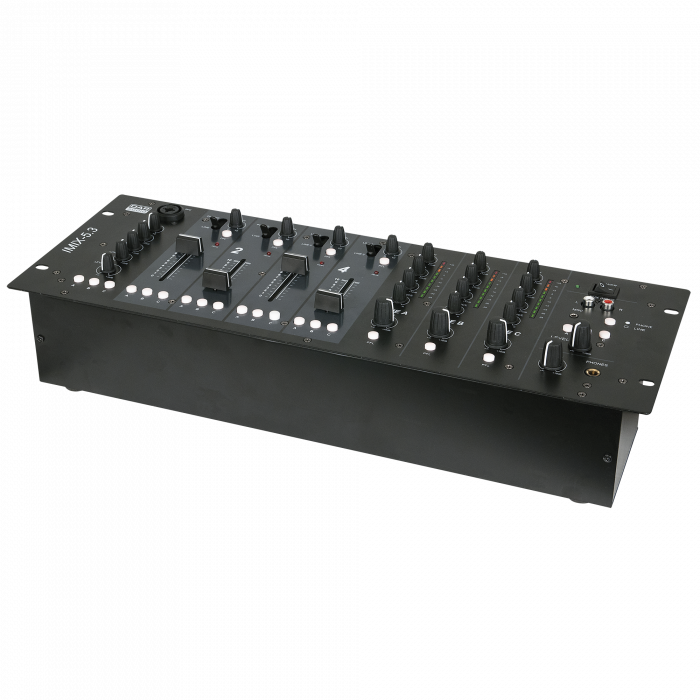

Dap Audio IMIX-5.3 3 Zone Control Mixer

  • Master outputs with 3-way tone control
  • Special front input for phone/MP3 devices
  • Zone control for 3 balanced outputs
  • 1 Mic, 7 Line, 2 Phono inputs

400

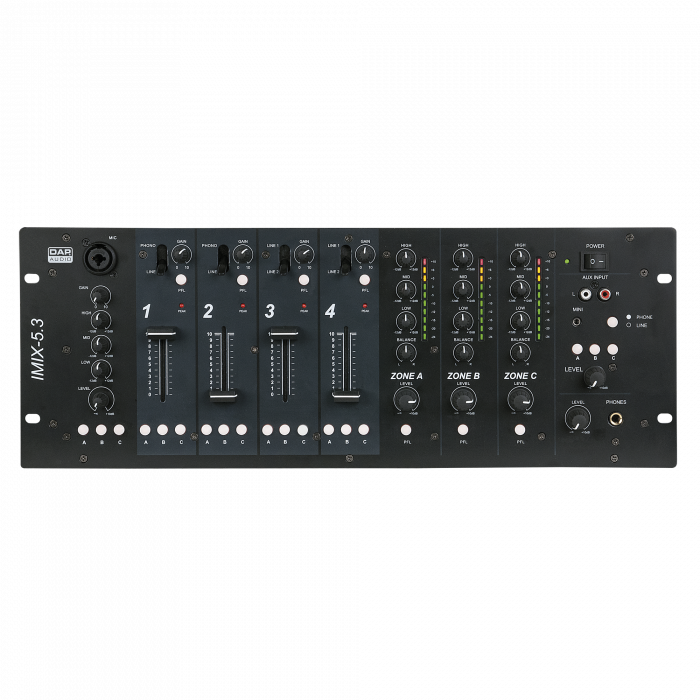

The DAP IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.

5-channel 4U install mixer – 3 zones

Inputs
Mono Inputs
1
Mono Input Connector
3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs
8
Stereo Input Connector
RCA, TRS balanced 3.5 mm
Phono Audio Inputs
2
Phono Audio Input Connector
RCA

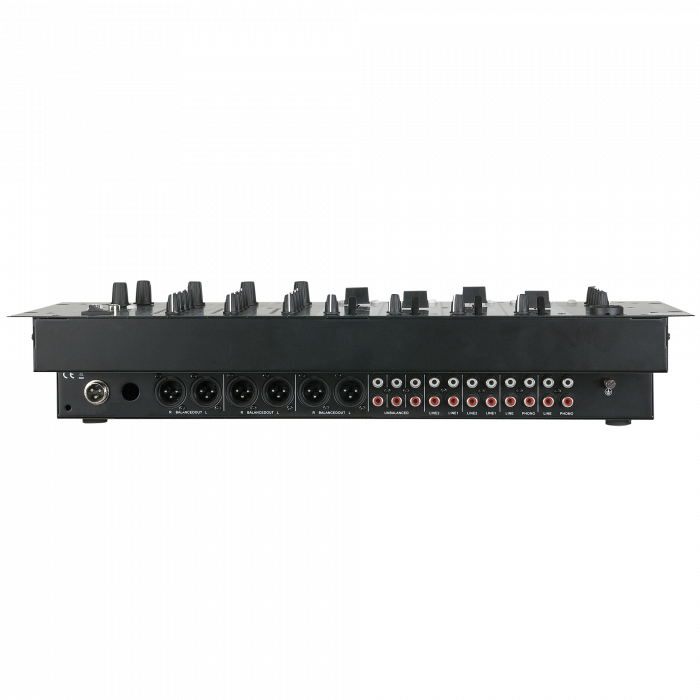

Outputs
Main Outputs
3
Main Output Connector
3-pin XLR, TRS balanced 6.3 mm
Zone Outputs
3
Zone Output Connector
3-pin XLR, RCA
Headphone Output
1
Headphone Output Connector
TS balanced 6.3 mm
Audio Specifications
THD Level
< 0.05 %
Signal-to-noise Ratio
> 100 dB
Frequency Response Minimum
20 Hz
Frequency Response Maximum
20000 Hz
Sound Editing
Microphone Input Equalizer Gain Range
12 dB
Parametric Microphone Equalizer
3 Bands
Microphone Input Fixed Frequencies
100, 1.000, 10.000 Hz
Graphic Main Equalizer
3 Bands
Main Output Equalizer Gain Range
12 dB
Main Output Fixed Frequencies
100, 1.000, 10.000 Hz
Parametric Zone Equalizer
3 Bands
Zone Output Equalizer Gain Range
12 dB
Zone Output Fixed Frequencies
100, 1.000, 10.000 Hz
Product Properties
LED Indicators
Channel select, Clip, Output level, Signal
Electrical Specifications and Connections
Power Supply
220-240 V AC 50 Hz (Power adapter)
Power Consumption
15 W
Power Connector In
Euro plug
Mechanical Specifications
Fader Length
60 mm (2.362″)
Height (mm)
176 mm (6.929″)
Width (mm)
483 mm (19.016″)
Depth (mm)
89 mm (3.504″)
Flightcase Size
19″
Rack Units
4 U
Housing
Metal
Colour
Black
Weight
3.4 kg (7.496 lb)
IP Rating
IP20 (indoor use only)
Included Items
Included Accessories
Adapter
