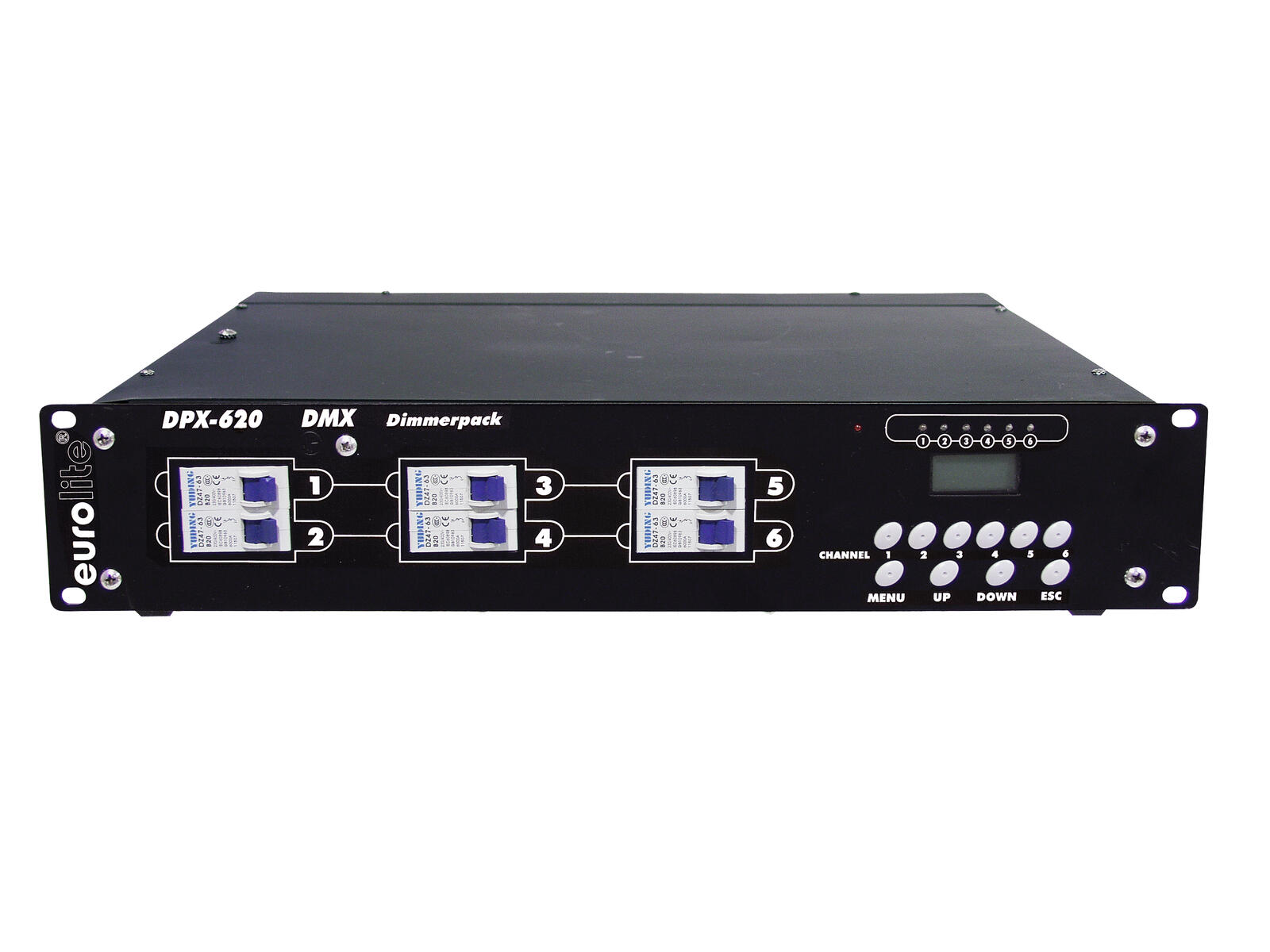

EUROLITE DPX-620 DMX Dimmer Pack

€650,00

Digital 6-channel dimmer pack

Universal dimmer pack for professional use
Can be operated 1-phase or 3-phase
DMX control or analog control possible
The DMX-starting address can be adjusted on the device
Synchronization of several devices possible via DMX
Adjusting the lamp pre-heat
With automatic circuit breaker per channel

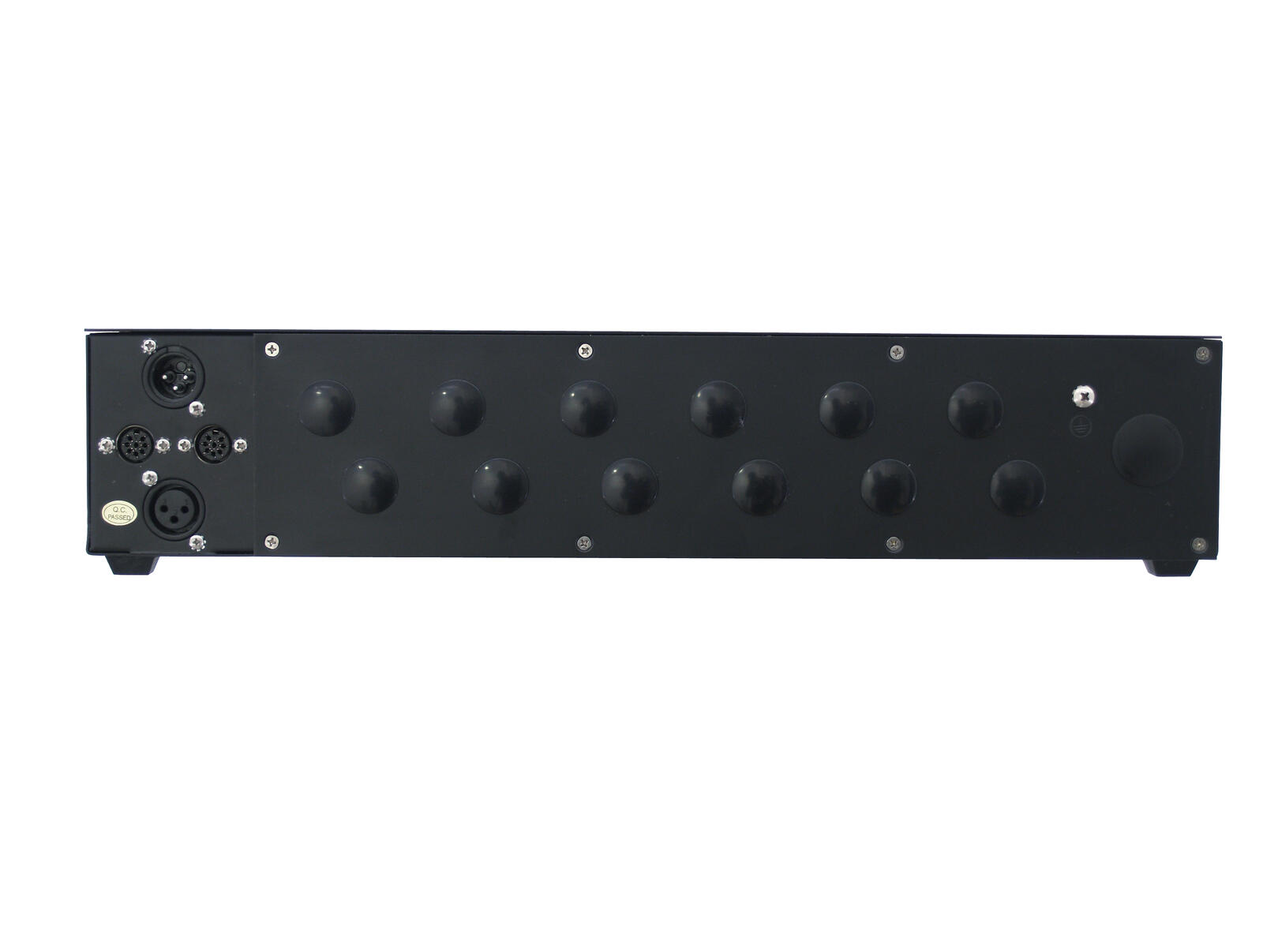

Channel-outputs on the rearpanel via pole connectors
Only for professional use
Preprogrammed 12 scenes/chases
Control via analog 0-10 V; stand-alone; DMX
(19″) 48.3 cm rack installation 2 U
For application areas such as: Trade fair and shop fitting; stage; theater; rental
Very quiet working noise

Нема прикажани својства.

Power supply:	230/380 V AC, 50 Hz
Output power:	Max. 4600 W per channal Max. 27600 W
Output current:	Max. 120 A
Power connection:	Mains input via screw terminal
Power output:	Screw terminal
Power output fuse per channel:	C 20 A fuse resettable
Programs:	Preprogrammed 12 scenes/chases
DMX channels:	6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Control:	Analog 0-10 V; stand-alone; DMX
Control channels:	6
Color:	Black
Housing design:	(19″) 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 42 cm Height: 8.9 cm
Weight:	7.70 kg
