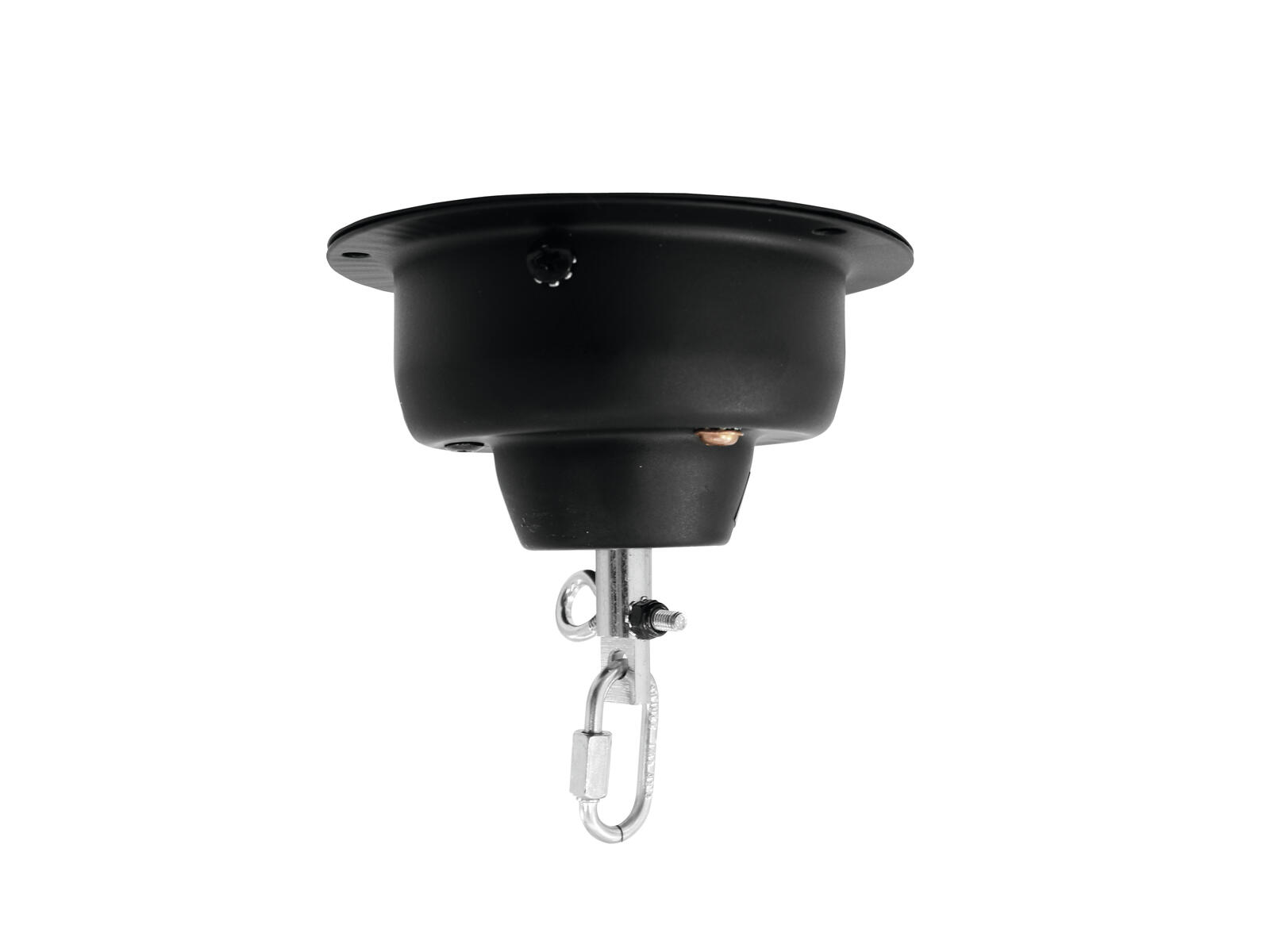

EUROLITE MD-1515 Safety Rotary Motor

€30,00

Mirror ball motor for mirror balls up to 40 cm diameter

The maximum load always means the mirror ball weight including chains and the fixation material
2 chains and 4 quick links must be ordered separately
1.5 rotations per minute
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Control via plug and play
Suitable for a mirror ball with a diameter of up to 40 cm
For application areas such as: Clubs/dancing school

Нема прикажани својства.

Power supply:	230 V AC, 50 Hz
Power consumption:	4 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 0.9 m
Speed:	1.5 RPM – 1.8 RPM , 360 ° forward/backward
Control:	Plug and play
Maximum load:	4 kg
Max. mirror ball diameter:	40 cm (EUROLITE)
Housing color:	Black
Diameter mounting holes:	3 x Ø5mm
Material:	Metal
Dimensions:	Height: 9 cm Diameter: Ø 10.8 cm
Weight:	0.38 kg
Chain link
Material:	Steel
Color:	Silver
