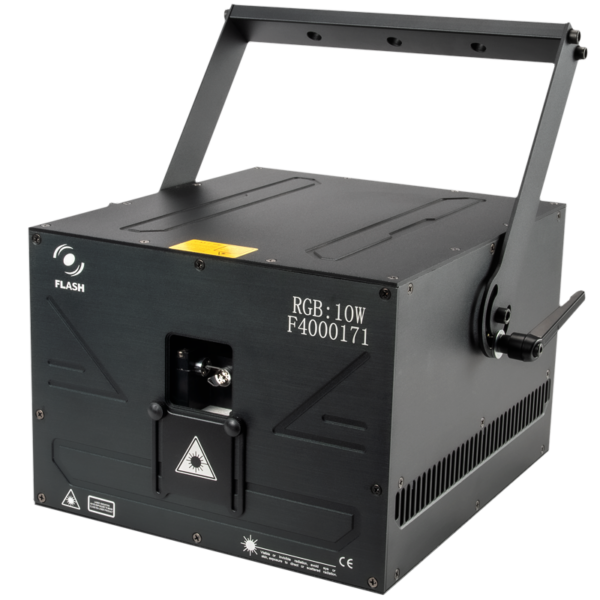

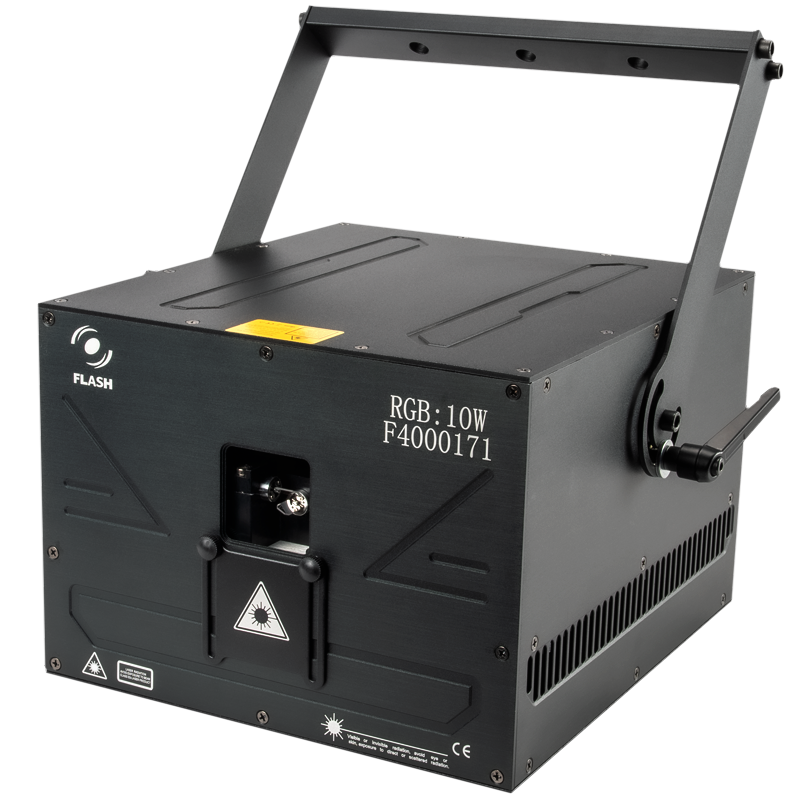

The 10W RGB LASER is distinguished by high power of 180W and effective light combinations. The intensity, speed and pattern of light can be operated via the following modes: ILDA (control from a computer), DMX512, PRG (program from a TF card), ILD (program from a TF card), SOUND mode, AUTO mode, Master/Slave.
Playback file format (.ild).
The laser generates beam diameters <6 mm with divergence <1.5 mrad. and the high-speed 40K optical scanner provides (+/-) 30° high-angle scanning.
RED laser: 3000mW, wavelength 638nm
GREEN laser: 3000mW, wavelength 525nm
BLUE laser: 4000mW, wavelength 450nm
In addition, the device is equipped with numerous safeguards to ensure safety protection: laser key switch, remote laser lock, SFS Control (ON/OFF scanner security control).
€1.500
Power Source (AC)
Supply voltage 90-240V
Power consumption 180W
Power frequency 50-60Hz
Light source
Type LASER (RGB)
Quantity 1
Power 180
Red 3000mW, wavelength 638nm
Green –
Blue –
Beam angle
Beam angle Range (30⁰)
DMX control
Number of modes 2
Number of channels 10-32
Modes of operation
DMX512 Yes
ILDA Yes
Sound control Yes
Auto control Yes
Master-slave Yes
TF Card (Micro SD) Yes (PRG-ILD)
User Interface
Physical buttons Yes
Knob Yes
LCD display Yes

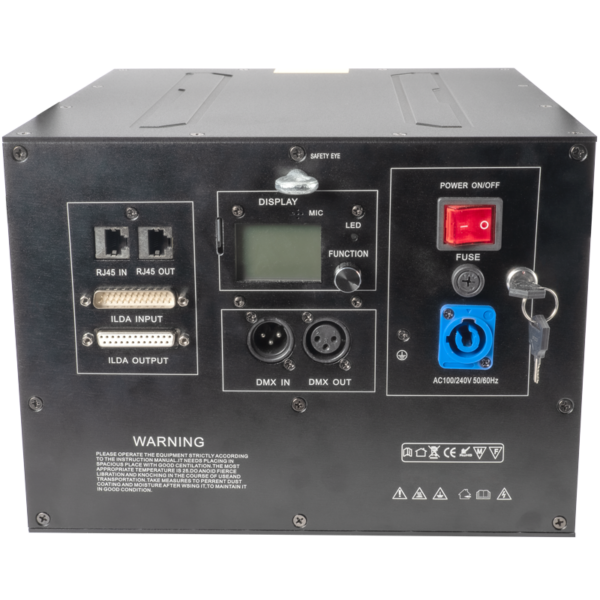

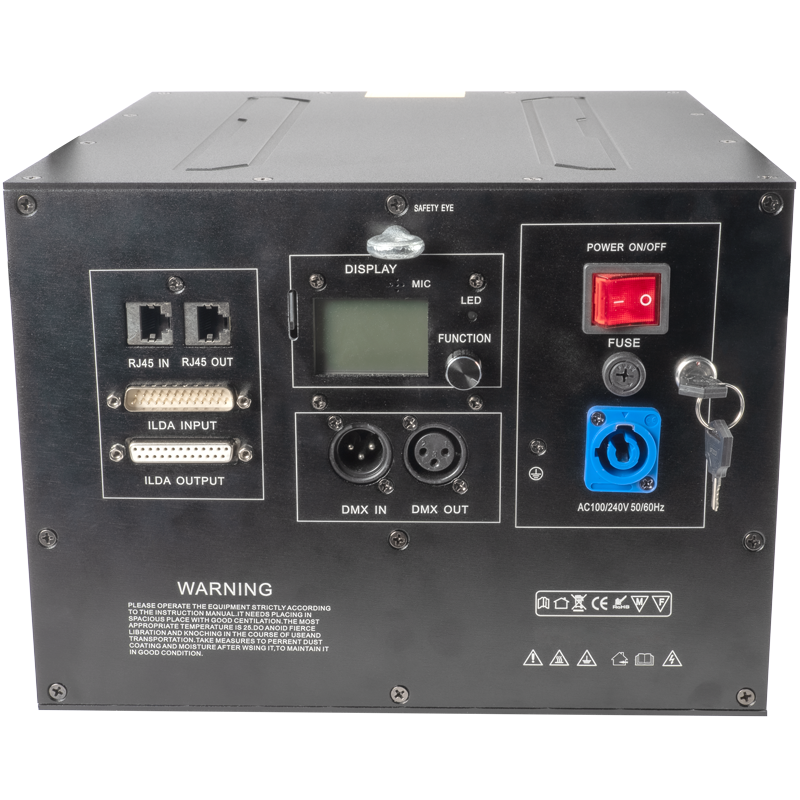

Connectors
AC IN PowerCON
DMX IN 3-pin DMX
DMX OUT 3-pin DMX
RJ45 IN Yes
RJ45 OUT Yes
ILDA IN Yes
ILDA OUT Yes
Physical parameters
IP protection level IP20
Housing type Aluminium
Fixing Integrated
Fixing Mounting hole
Housing color Black
Cooling Active
Length [cm] 38
Width [cm] 28
Height [cm] 22
Weight [kg] 7,8
Contents of the package
A kind of package Cardboard
Manual Yes
Wiring PowerCON
Device LASER 10W RGB
Handle
Steel safety cable No
