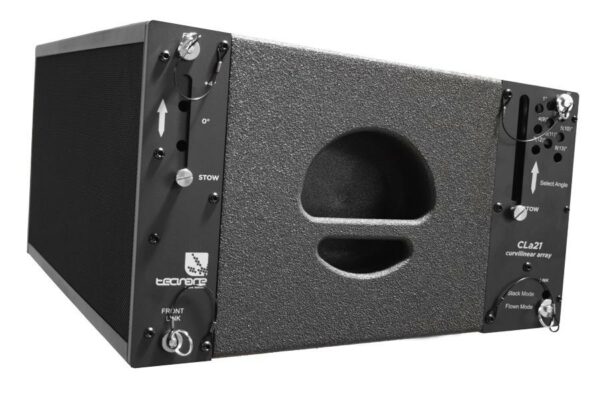

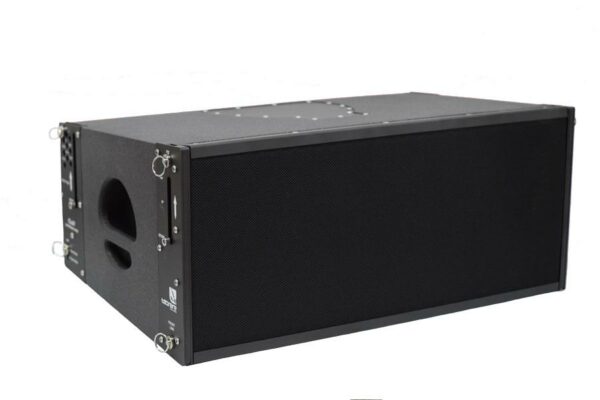

Tecnare CLA21 PLUS High Power Compact Line Array Loudspeaker

Compact three-way, bi-amp cabinet

2 x 10″ LF cone drivers + 1 x 1.4” exit, coax 4” VC MF & 2.5 mm VC HF driver on waveguide device.

3.400

The Tecnare Cla21Plus is the first of a new family of line source modules which incorporates a new unique technology that seamlessly integrates MF and HF components into a single horn which produces a coherent wavefront without interruptions. At the heart of the Cla21Plus line source module is a new coaxial 4-in voice coil mid-frequency and 2.5-in voice coil high-frequency driver, and covering the 400Hz to 20kHz range. It is loaded to a waveguide and a proprietary horn that ensures low distortion and controlled broadband directivity. With extended frequency response down to 55 Hz, the Cla21Plus LF section houses two 10-in dipolar mounted, high-excursion drive units, 3-in voice coils to maintain long throw projection of low frequencies. The cabinet construction has been made using premium Baltic birch and tour-ready, weather-resistant polyurea coating offering excellent protection and durability. The intuitive property four-point rigging system enhances ease-of-uses which allows angle selection to be made while boxes are stacked on the transport dolly. The Cla21Plus provides a superior performance to live & installed sound market at an affordable and very easy-to-work with package
  • Compact three-way, bi-amp cabinet
  • 2 x 10”LF lightweight neodymium motors
  • 1 x 1.4” coaxial mid-high compression Driver

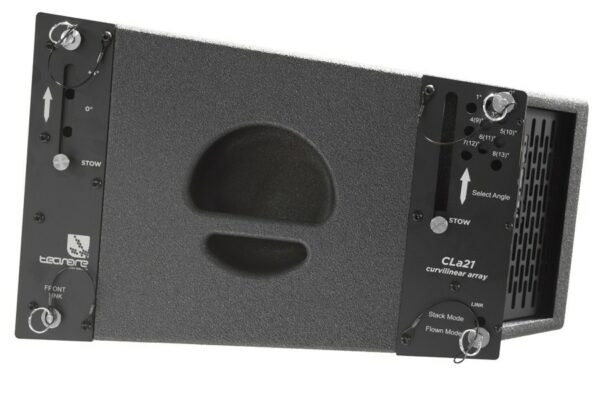

  • Easy propietary rigging systems
  • 8Ω LF and16Ω MF/HF Nominal Impedance

Applications

  • Theaters, arenas, Stadiums
  • Dance clubs
  • Medium size festivals
  • Coorporative events and churches
  • Fill and integration with Cla208
Frequency

Response

55 Hz – 20 kHz*
Frequency

Response:

Free Field

60 Hz/80** – 18 kHz ±3 dB
Sensitivity (1W/1m) 110 dBspl
Calculated SPL 141 dBspl continuous / 147 dBspl peak
Transducers:

Low/High Frequency

2 x 10″ LF cone drivers + 1 x 1.4” exit, coax 4” VC MF & 2.5 mm VC HF driver on waveguide device.
Dispersions (HxV) 75° x 13º (Only one box. Vertical varies with array lenght and configuration)
Recommended

Amplifiers

PA3000/PA5000/T20-44/T10-44/T20-48/T10-48
Power (AES)*** 1000 W LF / 180 W MF-HF
Power (Cont) 2000 W LF / 360 W MF-HF
Rate Impedance 8 Ω LF – 16 Ω MF/HF

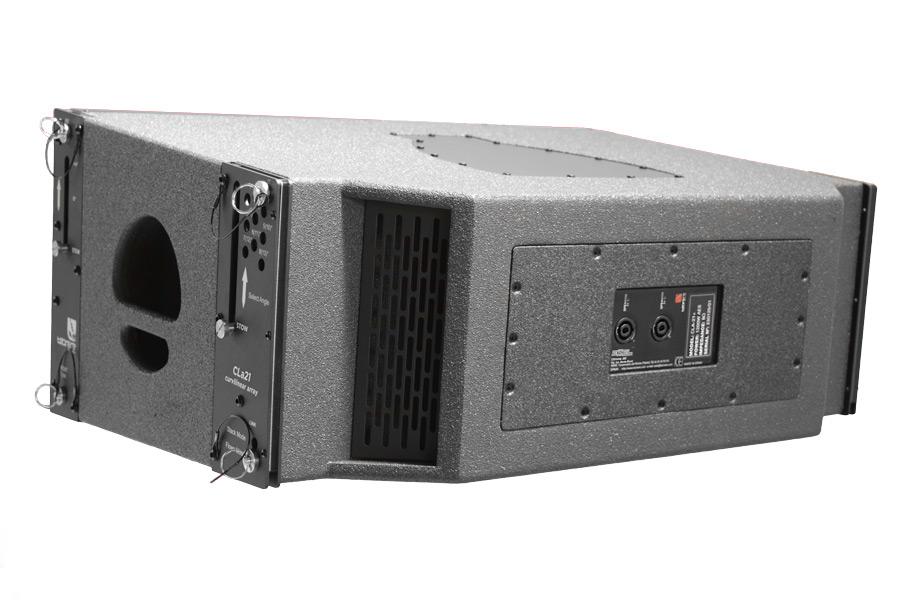

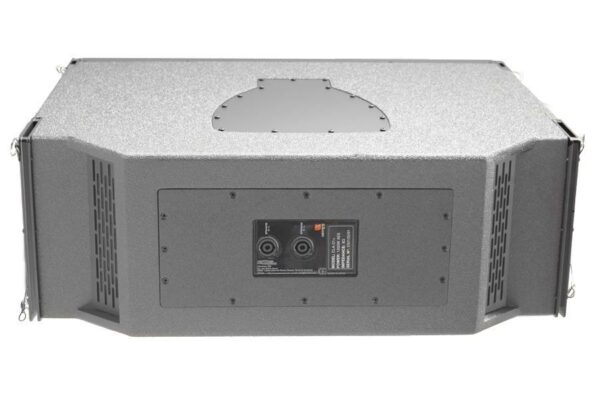

Input Connectors IN: 1xNL4 SpeakON® LINK: 1 x NL4 SpeakON®
NET Weight 39,5 kg (87.08 lbs)
Dimensions 767 x 580 x 320mm (30.2” x 22.84” x 12.60”)(WxDxH)
Construction 16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating.

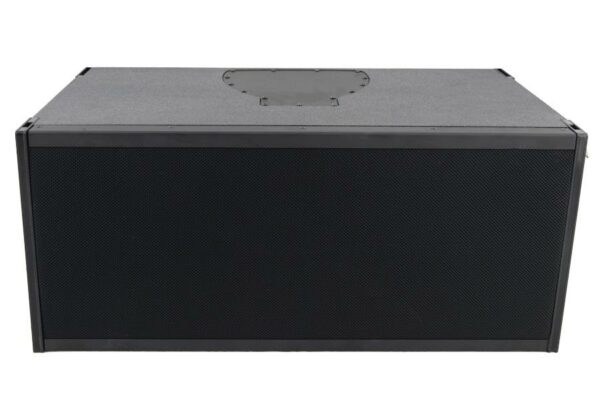

Protective Grille Powder coated perforated steel with acoustically transparent reticulated foam

*Recommended maximum operating frequency range. Response depends on loading conditions and room acoustics.

**Standard/CUT mode

***Based on a 2 hours test applying 6dB crest factor pink noise signal within the range Fs-10Fs (AES2-1984).
