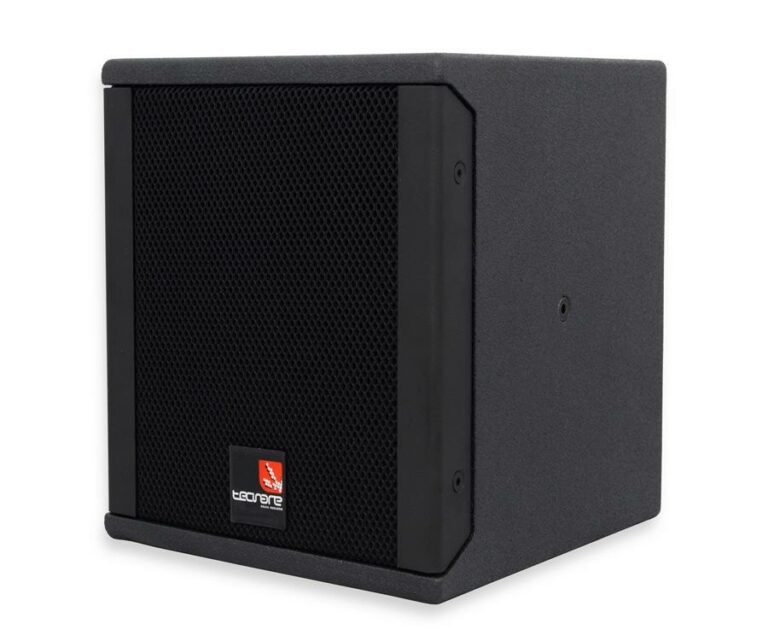

E Series
2-Way Passive speaker
1 x 6 ½-inch LF cone, Vented box
1 x 1-inch tweeter
€280
Features
Compact, vented two-way system
1 x 6½-inch-LF/ 1 x dome tweeter
High-output, low profile
Applications
Performing spaces
Gyms, museums and AV spaces
Multimedia spaces
Retail outlets
Educational Facilities
Frequency Response: | 70 Hz – 18 kHz ± 3dB, measured on axys |
Components: | 1 x 6,5-inch LF driver and 1 x 1-inch Tweeter |
Nominal Dispersions: | 135ºH x 125ºV @ 6dB point |
Impedance: | 16 Ohm |
Axial Sensitivity: | 88dB (1w/1m) |
Calculated SPL: | 107 dB continuous / 113 peak |
Power Handling: | 80 W AES / 160 W continuos |
Dimensions (HxWxD) (millimeters/inches): | 313 x 205 x 212 (mm) / 12.32″x 8.07″ x 8.34″ |
Net Weight (kg/Pounds): | 5,5 kg. / 12.12 lbs. |
Construction: | 16mm birch plywood. Finished in black paint |
Grille: | Powder coated perforated steel with acoustically transparent reticulated foam |
