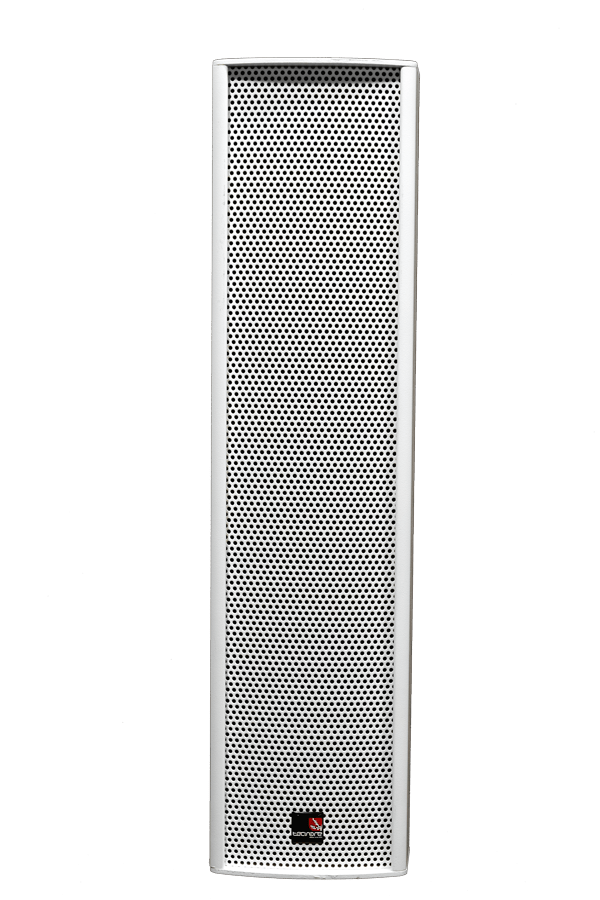

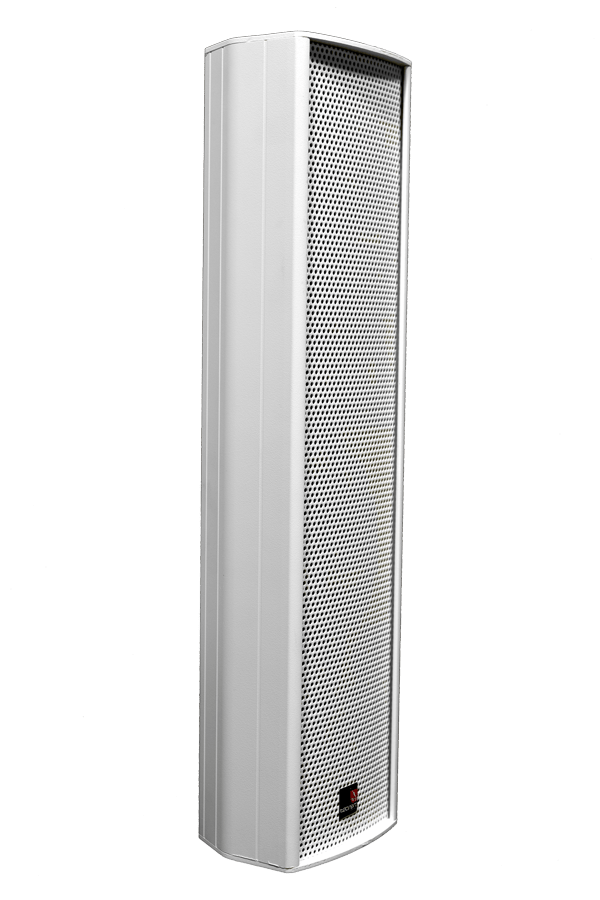

Tecnare TS43 Pasive Full-range Column Loudspeaker

  • Compact full range passive system
  •  4×3” Full range loudspeaker
  •  8 Ω nominal impedance
  •  Mounting accessories
  • 120 W AES / 240 W Continuous

290

Tecnare TS-43 is a compact pasive full-range column loudspeaker designed for small to mid-size venues with dificult acoustic enviroment where compact size, light weight and high speech intelligibility over distance are required. The column speaker are constructed in a narrow aluminum profile and contains four 3-inch low distortion cone loudspeakers. The small and unobtrusive aluminum enclosure is a fit for most architecturally environments. This range of speakers is the perfect solution for all kind of public address installations, designed to offer a cost efective but professional solution, suited for installations such as conference rooms, congress centers, place of worship, shopping malls, etc. TS-Series passive column loudspeakers are available in 2 colors : black and white Wall mount supports/brackets included.

Tecnare TS Series are a new Range of Tower Loudspeaker Series, specially designed for installations, were high definition and fashion design were required.
The small and unobtrusive aluminum enclosure is a fit for most architecturally environments. This range of speakers is the perfect solution for all kind of public address installations, designed to offer a cost efective but professional solution, suited for installations such as conference rooms, congress centers, place of worship, shopping malls, etc.
TS-Series passive column loudspeakers are available in 2 colors : black and white
Wall mount supports/brackets included.

Frequency Response¹ 190 Hz – 20 kHz*
Frequency Response: Free Field 200 Hz – 18 kHz ±3 dB
SPL (1m) 117 dB SPL
Maximum Peak SPL 123 dB SPL
Transducers: Low/High Frequency 4 x 3″ ferrite cone drivers
Sensitivity (1W/1m) 92 dB
Dispersions (HxV) Symmetrical 120° x 30º
Recommended amplifier PA900/PA4.450/T6-44/T03-48
Power @8Ω² 120 W AES / 240 W (Continuous)
Impedance 8 ohm

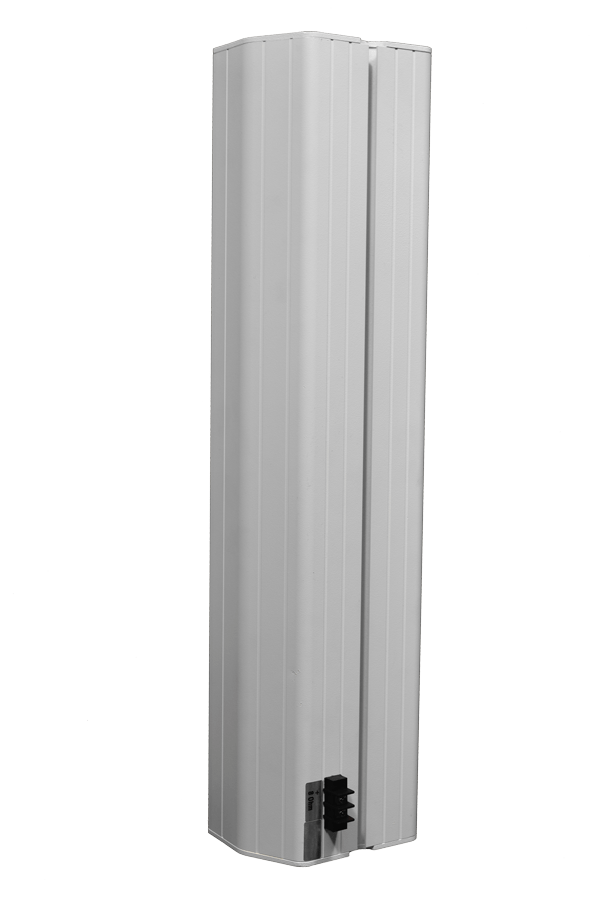

Input Connectors IN: 1xBarrier screw terminal block
NET Weight 3,78 kg (8.33 lbs)
Dimensions (HxWxD)
484 x 116 x 86,7 mm (HxWxD) (19.05” x 4.57” x 3.41”)
Construction
Extruded aluminium profile, textured powder coating.
Protective Grille
Powder coated custom perforated steel with acoustically
transparent reticulated fabric
