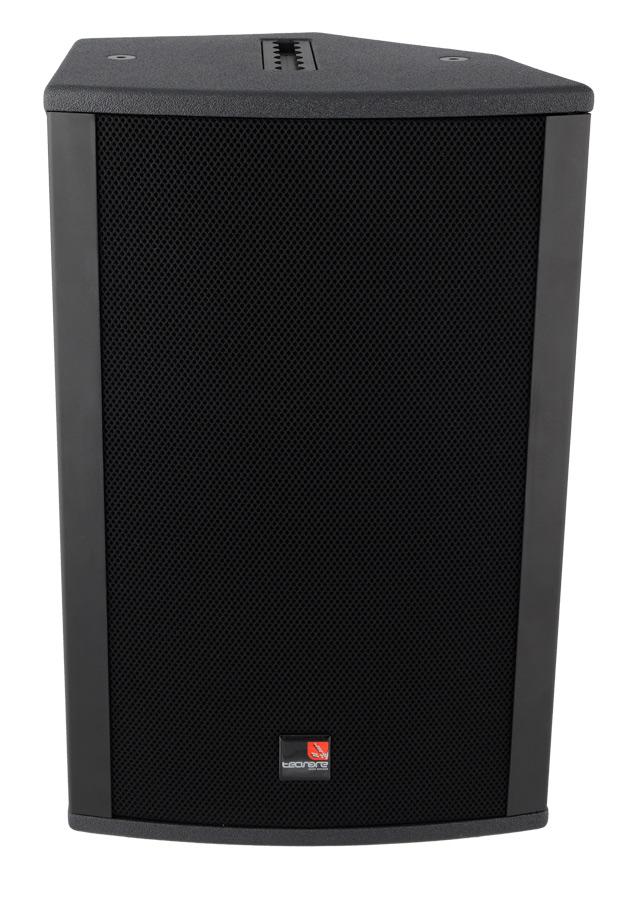

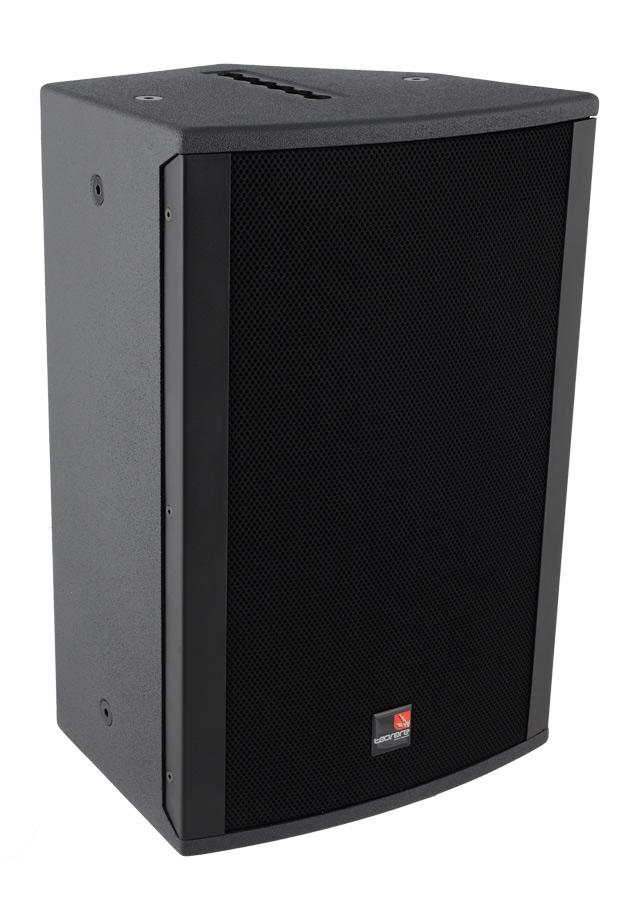

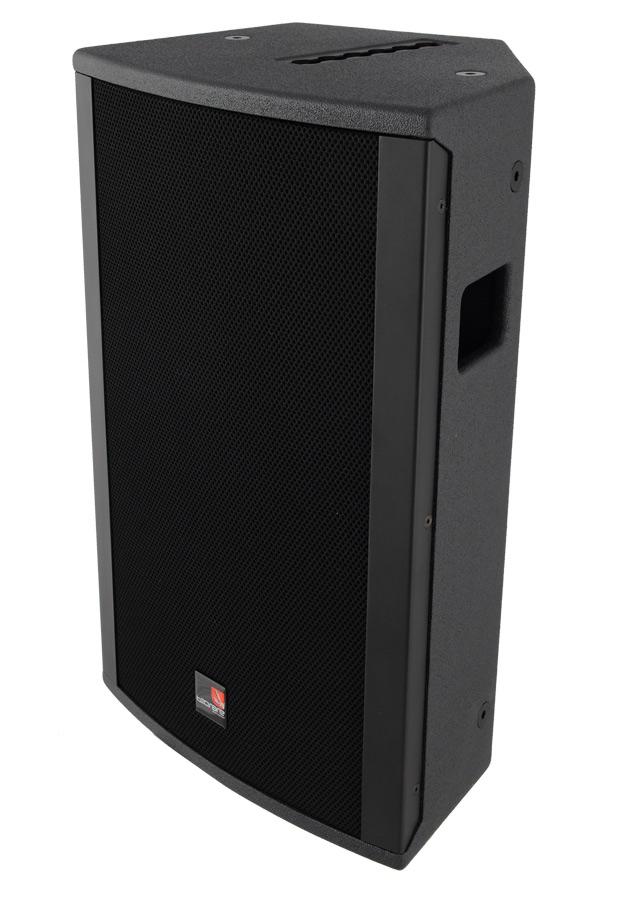

Tecnare V10 Multipurpose Enclosure

2-Way Passive Loudspeaker

1 x 10-inch LF cone, Vented box

1 x 1-inch compression driver on a rotatable exponential CD Horn

952

The V10 is a lightweight, flexible and multipurpose loudspeaker enclosure, designed for use in mobile or fixed sound reinforcement either as a main PA or as a stage monitor. The design includes a powerful 10-inch (3-inch voice coil) cone transducer tuned into a vented box, and a 1-inch exit/1.75-inch HF compression driver coupled to a rotatable coverage pattern 90ºx60º CD horn to provide a smooth and clear high frequency reproduction. The system include an internal passive filter/crossover network. Flying hardware provision, handles and a recessed floor stand socket are included as standard. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills.
  • Two-way full range loudspeaker
  • 1 x 10-inch LF cone / 1 x 1-inch exit, 1.75-inch voice coil compression driver
  • Rotatable horn for optimized pattern control

Applications

  • Highly intelligible vocal reproduction
  • Stand alone system
  • Dual use main/monitor two-way system
  • Corporate events
Frequency Response:  52 Hz – 20 kHz ±4dB, measured on axys
Components:    1×10” LF driver, 1×1” HF driver on a rotatable exponential horn
Nominal Dispersion: 90°H x 60°V@-6db points. Rotatable horn allows swap of horizontal and vertical pattern
Impedance: 8 Ohm
Axial Sensitivity:  97 dB (1w/1m)
Calculated SPL: 123 dB continuous/ 129 Peak
Power Handling: 350 W AES. 700 W continuous
Dimensions (HxWxD) (millimeters/inches): 525x340x290 mm / 20.67″ x 13.38″ x 11.42″
Net Weight (kg/Pounds): 14,4 Kg / 31.75 lbs
Construction: 16mm birch plywood. Finished in black semi-matt textured Durawound weatherized coating. One recessed carrying handle
Grille:  Powder coated perforated steel with acoustically transparent reticulated foam
